Increased Protection

Provides protection against falling water, splashing water, dust, dirt, lint and fibers for reliable operation even in the harshest environments.

Industry 4.0/IoT (Internet of Things)

Industry 4.0 is the evolution of manufacturing, empowering businesses to learn and adjust from data available through connected manufacturing.

Dual Port EtherNet/IP®

Enables simple connection of multiple AS3s together on one network while simplifying cable management.

Embedded Web Server

Allows for quick access to EtherNet/IP® setup, parameters and real-time monitoring for diagnostics. Accessible through standard web browsers on PC, tablets, and smart phones.

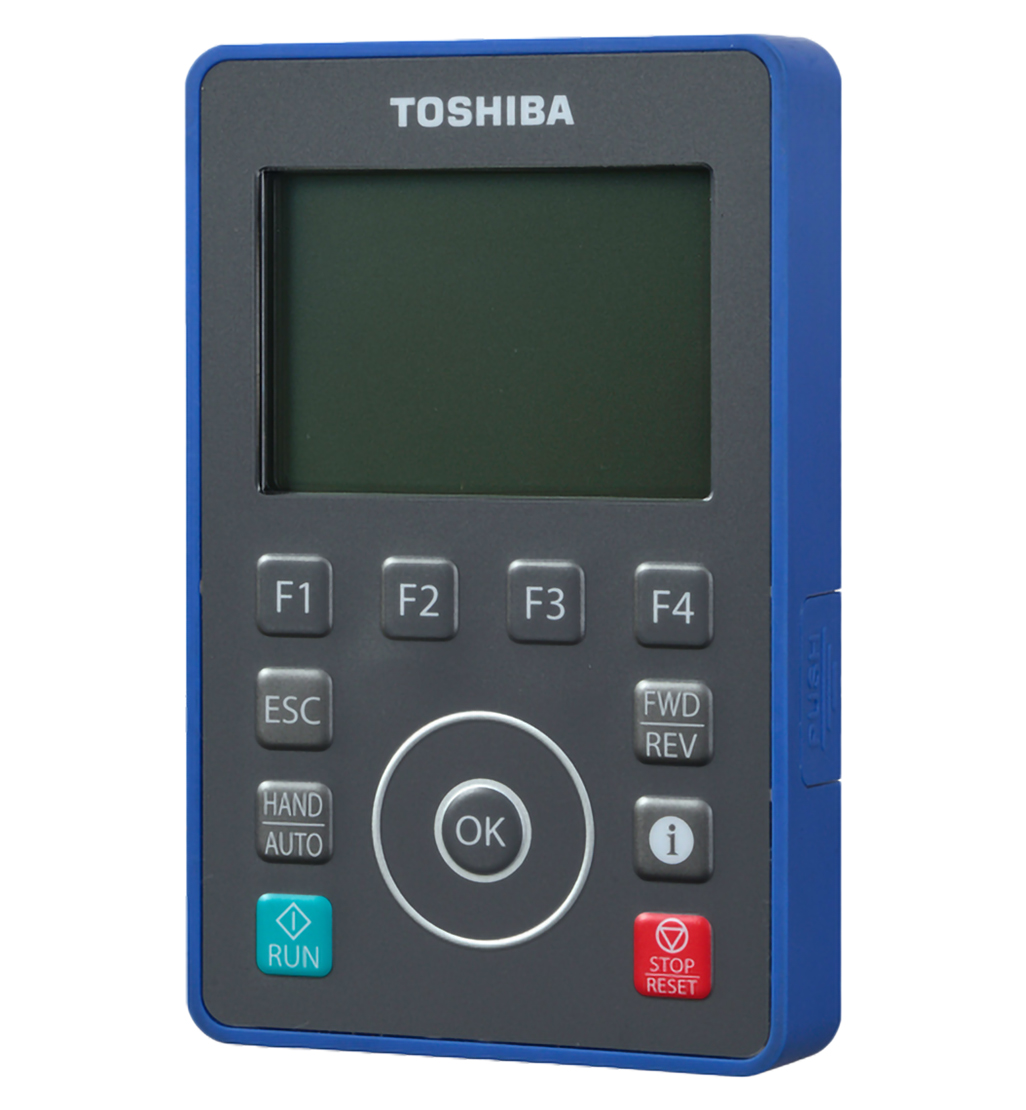

Built-in LCD Display & Advanced Keypad

Multi-language LCD display, remote mounting, IP65 rated, transfer/save parameters, real-time clock for fault logging, and calendar functionality.

QR Codes

Displayed when troubleshooting faults or alarms, providing immediate access to a dedicated web link for maintenance and support.

STO Terminal

Detachable terminal strip meets IEC directives for safety with full implementation of Safe Torque Off, which quickly shuts down the system in the event of an emergency stop.

Permanent Magnet Motor Control

For control of permanent magnet (PM) motors, which output higher torque and efficiency.

Pump Control

Multi-PID control with sleep function as well as the ability to autonomously control booster pumps based on system demands or operating a secondary PID control loop.

ASD Pro Software

Toshiba’s programming software enables users to perform logic-type programming without the added cost of a micro-PLC.
