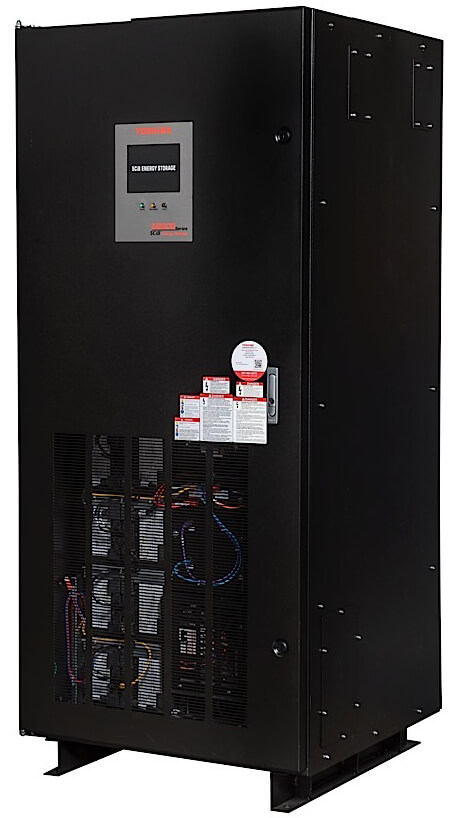

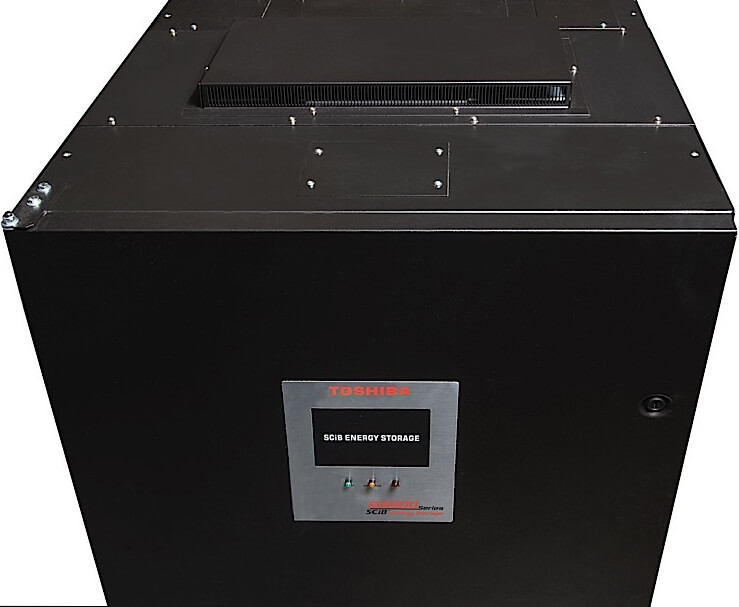

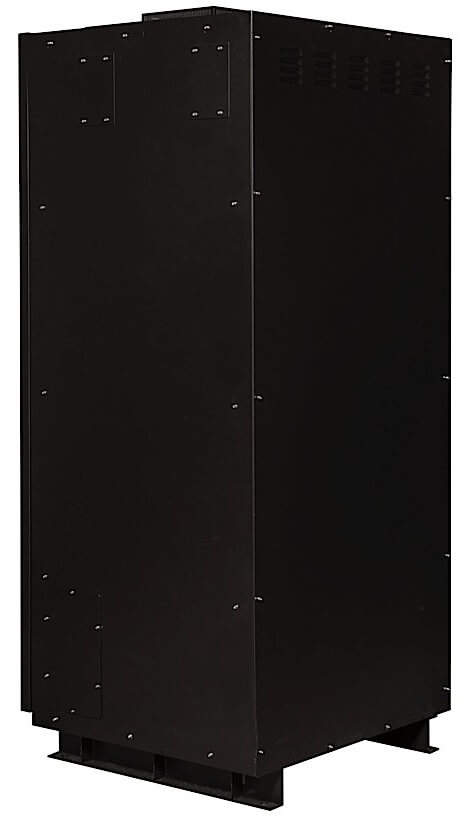

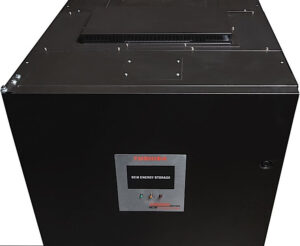

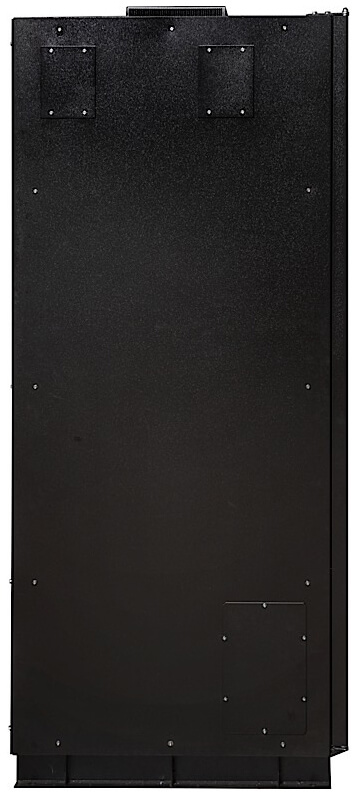

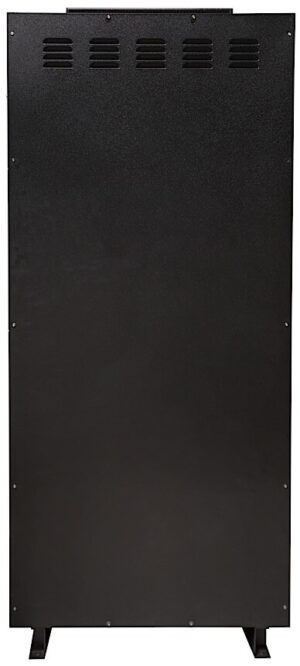

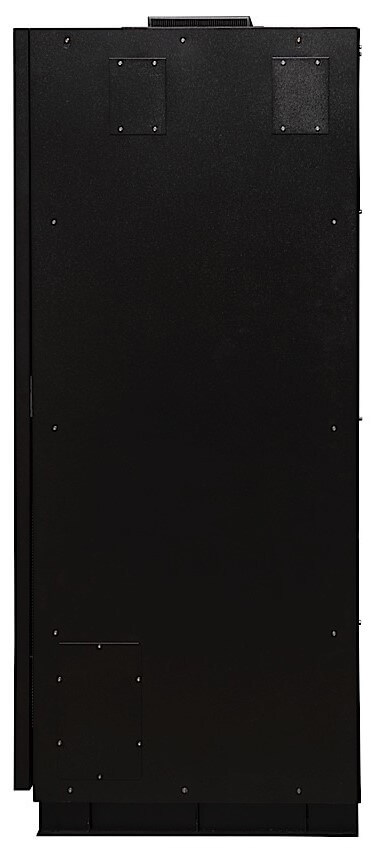

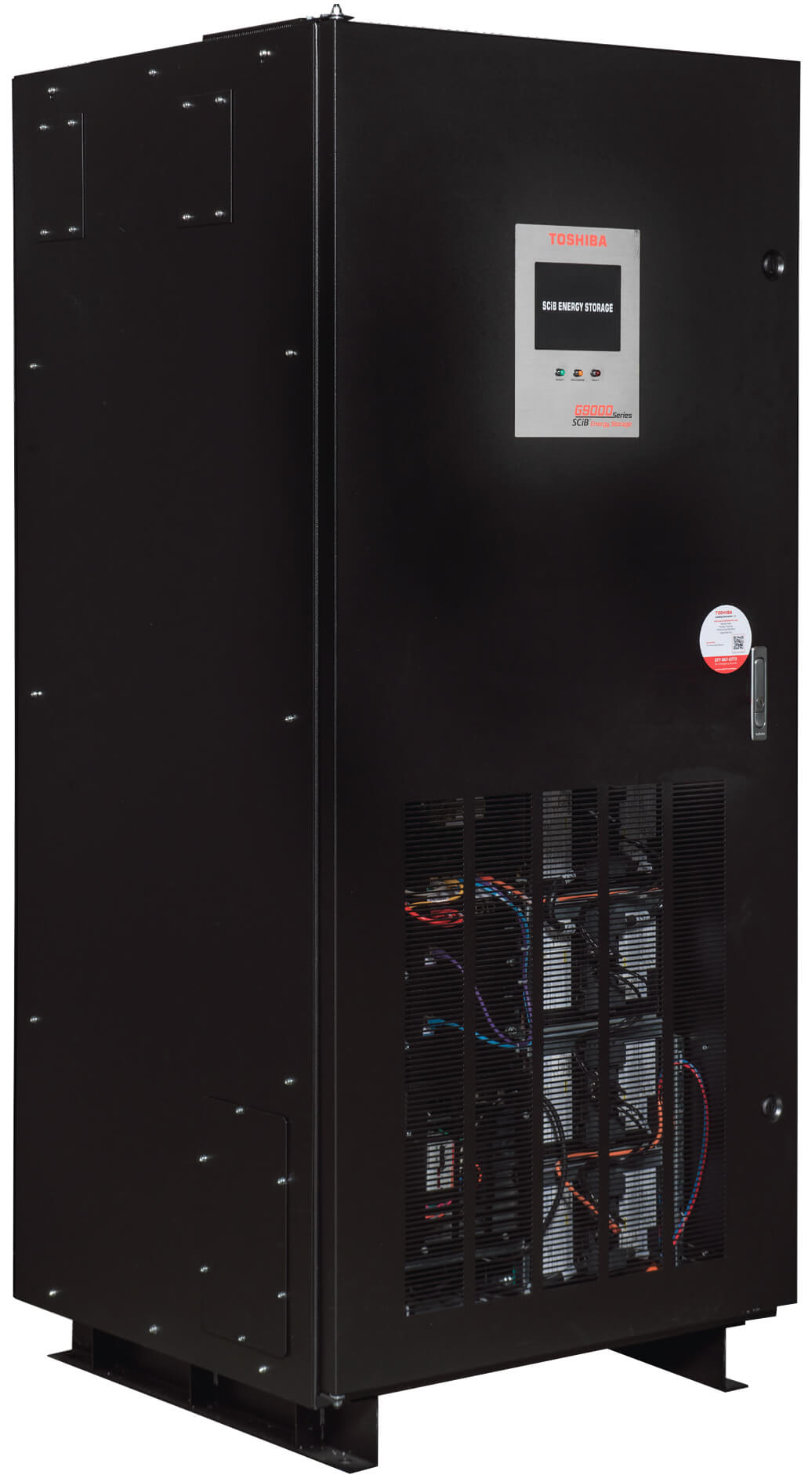

The Toshiba 480VDC SCiB™ Energy Storage System (ESS) employs Lithium Titanium Oxide (LTO) proprietary battery chemistry that ensures safe and reliable critical power backup for UPS applications. The LTO chemistry eradicates the risk of Lithium dendrite growth the major cause of thermal runaway in other lithium battery chemistries. The Toshiba SCiB™ ESS requires minimal maintenance and has a service life of over 20 years. With a lighter and more compact enclosure than lead acid or other Lithium ESS, Toshiba SCiB™ ESS maximizes Data Center revenue and Return of Investment (ROI). The Toshiba 480VDC SCiB™ ESS is ideal for high energy demand applications like large scale data centers and healthcare imaging equipment, providing safe and reliable backup power with fast recharge capabilities in a compact form.
Key Features
- Over 15,000 cycles without loss of life (BOL = EOL)
- 20 times longer cycle life than VRLA batteries.
- Over 20 years life expectancy.
- Half the volume and weight of VRLA batteries.
- LTO is non inducive of dendritic growth.
- Long storage capability. Retains over 90% charge for over a year at 0°C to 40°C.
- Parallel up to 10 cabinets for capacity or application specific critical power UPS backup times
- DC breaker included: no separate overcurrent protection needed.
- Connect up to four 480VDC SCiB™ ESS cabinets with provided buss bars for ease of installation and cable runs.
- UL 9540A fire risk tested.
- Seismic compliant to ICC-ES AC156-2015
- RemotEye® ESS and HMI monitoring option ready
- SCiB™ Cells, SCiB™ Modules, and SCiB™ ESS Manufactured entirely by Toshiba.
- 480VDC SCiB™ ESS Assembled in USA.
- SCiB™ batteries warranted for 12-years.
